IDI活塞杆专用
产品参数： 聚氨酯橡胶 压力：30-70 Mpa
速度：1 m/s
温度：-35℃+100℃
简介：这是大截面活塞杆密封专用密封件。可用于大范围的压力，有极好的耐磨性和密封能力。

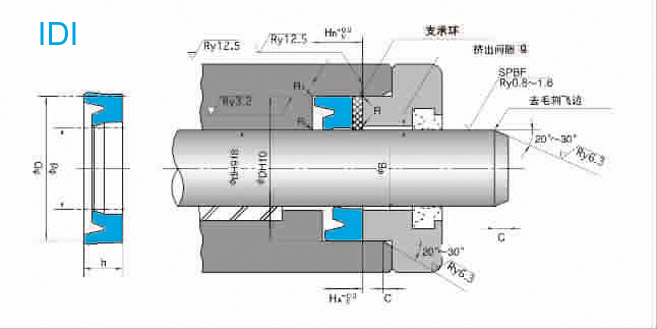

| 密封件的公称尺寸及腔体尺寸 | NOK零件号 | |||||
| d | D | h | HA | HB | C | |
| 6.3 | 14.3 | 5 | 5.7 | 7.7 | 2.5 | ※FU0021F0 |
| 16.3 | 6 | 7 | 9 | ※FU0022F0 | ||
| 16.3 | 7.5 | 8.5 | 10.5 | FU0023F0 | ||
| 16.3 | 8 | 9 | 11 | FU0024F0 | ||
| 8 | 16 | 5 | 5.7 | 7.7 | ※FU0039F0 | |
| 18 | 6 | 7 | 9 | ※FU0041F0 | ||
| 18 | 7.5 | 8.5 | 10.5 | FU0042F0 | ||
| 18 | 8 | 9 | 11 | FU0043F0 | ||
| 9 | 17 | 5 | 5.7 | 7.7 | ※FU0051F0 | |
| 19 | 6 | 7 | 9 | ※FU0052F0 | ||
| 19 | 7.5 | 8.5 | 10.5 | FU0053F0 | ||
| 19 | 8 | 9 | 11 | FU0054F0 | ||
| 10 | 18 | 5 | 5.7 | 7.7 | ※FU0064F0 | |
| 20 | 6 | 7 | 9 | ※FU0066F0 | ||
| 20 | 7.5 | 8.5 | 10.5 | FU0068F0 | ||
| 20 | 8 | 9 | 11 | FU0069F0 | ||
| 11.2 | 19.2 | 5 | 5.7 | 7.7 | ※FU0078F0 | |
| 21.2 | 6 | 7 | 9 | ※FU0079F0 | ||
| 21.2 | 7.5 | 8.5 | 10.5 | FU0080F0 | ||
| 21.2 | 8 | 9 | 11 | FU0081F0 | ||
| 12.5 | 20.5 | 5 | 5.7 | 7.7 | ※FU0098F0 | |
| 22.5 | 6 | 7 | 9 | ※FU0100F0 | ||
| 22.5 | 7.5 | 8.5 | 10.5 | FU0101F0 | ||
| 22.5 | 8 | 9 | 11 | FU0102F0 | ||
| 14 | 22 | 5 | 5.7 | 7.7 | ※FU0116F0 | |
| 24 | 6 | 7 | 9 | ※FU0120F0 | ||
| 24 | 7.5 | 8.5 | 10.5 | FU0121F0 | ||
| 24 | 8 | 9 | 11 | FU0122F0 | ||
| 15 | 23 | 5 | 5.7 | 7.7 | ※FU0131F0 | |
| 25 | 6 | 7 | 9 | ※FU0134F0 | ||
| 25 | 8 | 9 | 11 | FU0135F0 | ||
| 28 | 8 | 9 | 11 | 3.5 | FU0136F0 | |
| 28 | 10 | 11 | 13 | FU0137F0 | ||
| 16 | 24 | 5 | 5.7 | 7.7 | 2.5 | ※FU0150F0 |
| 26 | 6 | 7 | 9 | ※FU0155F0 | ||
| 26 | 7.5 | 8.5 | 10.5 | FU0156F0 | ||
| 26 | 8 | 9 | 11 | FU0157F0 | ||
| 18 | 28 | 6 | 7 | 9 | ※FU0181F0 | |
| 28 | 8 | 9 | 11 | FU0182F0 | ||
| 31 | 8 | 9 | 11 | 3.5 | FU0185F0 | |
| 31 | 10 | 11 | 13 | FU0186F0 | ||
| 20 | 30 | 6 | 7 | 9 | ※FU0214F0 | |
| 30 | 8 | 9 | 11 | FU0215F0 | ||
| 33 | 8 | 9 | 11 | FU0220F0 | ||
| 33 | 10 | 11 | 13 | FU0221F0 | ||
| 22 | 35 | 10 | 11 | 13 | FU0249F0 | |
| 22.4 | 32.4 | 6 | 7 | 9 | ※FU0262F0 | |
| 32.4 | 8 | 9 | 11 | FU0263F0 | ||
| 35.4 | 8 | 9 | 11 | FU0264F0 | ||
| 35.4 | 10 | 11 | 13 | FU0265F0 | ||
| 25 | 35 | 6 | 7 | 9 | ※FU0279F0 | |
| 35 | 8 | 9 | 11 | FU0282F0 | ||
| 38 | 8 | 9 | 11 | FU0287F0 | ||
| 38 | 10 | 11 | 13 | FU0288F0 | ||
| 40 | 9 | 10 | 12 | 4 | FU0291F0 | |
| 40 | 10 | 11 | 13 | FU0292F0 | ||
| 27 | 40 | 10 | 11 | 14 | FU2130F0 | |
| 28 | 38 | 6 | 7 | 10 | ※FU0322F0 | |
| 38 | 8 | 9 | 12 | FU0323F0 | ||
| 41 | 8 | 9 | 12 | FU0334F0 | ||
| 41 | 10 | 11 | 14 | FU0335F0 | ||
| 43 | 9 | 10 | 13 | FU0339F0 | ||
| 43 | 10 | 11 | 14 | FU0340F0 | ||
| 30 | 40 | 8 | 9 | 12 | FU0359F0 | |
| 43 | 10 | 11 | 14 | FU0364F0 | ||
| 45 | 9 | 10 | 13 | FU0367F0 | ||
| 45 | 10 | 11 | 14 | FU0368F0 | ||
| 31.5 | 41.5 | 8 | 9 | 12 | FU0383F0 | |
| 44.5 | 8 | 9 | 12 | FU0384F0 | ||
| 44.5 | 10 | 11 | 14 | FU0385F0 | ||
| 46.5 | 9 | 10 | 13 | FU0386F0 | ||
| 46.5 | 10 | 11 | 14 | FU0387F0 | ||
| 34 | 50 | 12 | 13 | 16 | FU0408F0 | |
| 35 | 45 | 8 | 9 | 12 | FU0427F0 | |
| 50 | 9 | 10 | 13 | FU0436F0 | ||
| 50 | 10 | 11 | 14 | FU0437F0 | ||
| 50 | 12 | 13 | 16 | FU0438F0 | ||
| 35.5 | 45.5 | 8 | 9 | 12 | FU0453F0 | |
| 50.5 | 9 | 10 | 13 | FU0455F0 | ||
| 50.5 | 10 | 11 | 14 | FU0456F0 | ||
| 51.5 | 10 | 11 | 14 | FU0457F0 | ||
| 51.5 | 12 | 13 | 16 | FU0458F0 | ||
| 40 | 50 | 8 | 9 | 12 | FU0498F0 | |
| 55 | 9 | 10 | 13 | FU0504F0 | ||
| 55 | 10 | 11 | 14 | FU0505F0 | ||
| 56 | 10 | 11 | 14 | FU0508F0 | ||
| 56 | 12 | 13 | 16 | FU0509F0 | ||
| 45 | 55 | 8 | 9 | 12 | FU0569F0 | |
| 60 | 9 | 10 | 13 | FU0575F0 | ||
| 60 | 10 | 11 | 14 | FU0577F0 | ||
| 61 | 10 | 11 | 14 | FU0579F0 | ||
| 61 | 12 | 13 | 16 | FU0580F0 | ||
| 47 | 63 | 12 | 13 | 16 | FU0591F0 | |
| 50 | 60 | 8 | 9 | 12 | FU0620F0 | |
| 65 | 9 | 10 | 13 | FU0630F0 | ||
| 65 | 10 | 11 | 14 | FU0631F0 | ||
| 66 | 10 | 11 | 14 | FU0634F0 | ||
| 66 | 12 | 13 | 16 | FU0635F0 | ||
| 70 | 12 | 13 | 16 | FU0639F0 | ||
| 53 | 69 | 12 | 13 | 16 | FU0682F0 | |
| 55 | 65 | 8 | 9 | 12 | FU0696F0 | |
| 70 | 9 | 10 | 13 | FU0700F0 | ||
| 70 | 10 | 11 | 14 | FU0701F0 | ||
| 71 | 10 | 11 | 14 | FU0703F0 | ||
| 71 | 12 | 13 | 16 | FU0704F0 | ||
| 75 | 12 | 13 | 16 | FU0708F0 | ||
| 56 | 66 | 8 | 9 | 12 | FU0723F0 | |
| 71 | 9 | 10 | 13 | FU0724F0 | ||
| 71 | 10 | 11 | 14 | FU0725F0 | ||
| 72 | 10 | 11 | 14 | FU0726F0 | ||
| 72 | 12 | 13 | 16 | FU0727F0 | ||
| 76 | 12 | 13 | 16 | FU0728F0 | ||
| 60 | 70 | 8 | 9 | 12 | FU0747F0 | |
| 75 | 9 | 10 | 13 | FU0753F0 | ||
| 75 | 10 | 11 | 14 | FU0754F0 | ||
| 76 | 10 | 11 | 14 | FU0756F0 | ||
| 76 | 12 | 13 | 16 | FU0757F0 | ||
| 80 | 12 | 13 | 16 | FU0761F0 | ||
| 63 | 73 | 8 | 9 | 12 | FU0787F0 | |
| 78 | 9 | 10 | 13 | FU0788F0 | ||
| 78 | 10 | 11 | 14 | FU0789F0 | ||
| 79 | 10 | 11 | 14 | FU0790F0 | ||
| 79 | 12 | 13 | 16 | FU0791F0 | ||
| 83 | 12 | 13 | 16 | FU0793F0 | ||
| 64 | 80 | 12 | 13 | 16 | FU2131F0 | |
| 65 | 75 | 8 | 9 | 12 | 5 | FU0810F0 |
| 80 | 9 | 10 | 13 | FU0815F0 | ||
| 80 | 12 | 13 | 16 | FU0816F0 | ||
| 85 | 12 | 13 | 16 | FU0819F0 | ||
| 67 | 82 | 9 | 10 | 13 | FU0830F0 | |
| 87 | 15 | 16 | 19 | FU0832F0 | ||
| 70 | 80 | 8 | 9 | 12 | FU0850F0 | |
| 85 | 9 | 10 | 13 | FU0857F0 | ||
| 85 | 10 | 11 | 14 | FU0858F0 | ||
| 90 | 12 | 13 | 16 | FU0862F0 | ||
| 90 | 15 | 16 | 19 | FU0864F0 | ||
| 71 | 81 | 8 | 9 | 12 | FU0881F0 | |
| 86 | 9 | 10 | 13 | FU0882F0 | ||
| 86 | 10 | 11 | 14 | FU0883F0 | ||
| 91 | 12 | 13 | 16 | FU0884F0 | ||
| 91 | 15 | 16 | 19 | FU0885F0 | ||
| 75 | 85 | 8 | 9 | 12 | FU0903F0 | |
| 90 | 9 | 10 | 13 | FU0906F0 | ||
| 90 | 10 | 11 | 14 | FU0907F0 | ||
| 95 | 12 | 13 | 16 | FU0910F0 | ||
| 95 | 15 | 16 | 19 | FU0911F0 | ||
| 80 | 90 | 8 | 9 | 12 | FU0940F0 | |
| 95 | 9 | 10 | 13 | FU0942F0 | ||
| 95 | 10 | 11 | 14 | FU0943F0 | ||
| 100 | 12 | 13 | 16 | FU0948F0 | ||
| 100 | 15 | 16 | 19 | FU0949F0 | ||
| 85 | 100 | 10 | 11 | 14 | FU0985F0 | |
| 105 | 12 | 13 | 16 | FU0989F0 | ||
| 105 | 15 | 16 | 19 | FU0990F0 | ||
| 90 | 105 | 10 | 11 | 14 | FU1025F0 | |
| 110 | 12 | 13 | 16 | FU1030F1※ | ||
| 110 | 15 | 16 | 19 | FU1031F0 | ||
| 95 | 110 | 10 | 11 | 14 | FU1052F0 | |
| 115 | 12 | 13 | 16 | FU1056F0 | ||
| 115 | 15 | 16 | 19 | FU1057F0 | ||
| 100 | 115 | 10 | 11 | 14 | FU1083F0 | |
| 120 | 12 | 13 | 16 | FU1089F0 | ||
| 120 | 15 | 16 | 19 | FU1091F0 | ||
| 105 | 120 | 10 | 11 | 14 | FU1126F0 | |
| 125 | 15 | 16 | 19 | FU1129F0 | ||
| 125 | 16 | 17 | 20 | FU1130F0 | ||
| 106 | 121 | 10 | 11 | 14 | FU1137F0 | |
| 126 | 15 | 16 | 19 | FU1138F0 | ||
| 126 | 16 | 17 | 20 | FU1139F0 | ||
| 110 | 125 | 10 | 11 | 14 | FU1158F0 | |
| 130 | 15 | 16 | 19 | FU1165F0 | ||
| 130 | 16 | 17 | 20 | FU1166F0 | ||
| 112 | 127 | 9 | 10 | 13 | FU1180F0 | |
| 127 | 10 | 11 | 14 | FU1181F0 | ||
| 132 | 15 | 16 | 19 | FU1182F0 | ||
| 132 | 16 | 17 | 20 | FU1183F0 | ||
| 118 | 133 | 10 | 11 | 14 | FU1206F0 | |
| 138 | 15 | 16 | 19 | FU1207F0 | ||
| 138 | 16 | 17 | 20 | FU1208F0 | ||
| 120 | 135 | 10 | 11 | 14 | FU1221F0 | |
| 140 | 15 | 16 | 19 | FU1224F0 | ||
| 140 | 16 | 17 | 20 | FU1225F0 | ||
| 125 | 140 | 10 | 11 | 14 | 6.5 | FU1253F0 |
| 145 | 12 | 13 | 16 | FU1256F0 | ||
| 145 | 16 | 17 | 20 | FU1258F0 | ||
| 150 | 19 | 20 | 23 | FU2132F0 | ||
| 150 | 20 | 21 | 24 | FU1260F0 | ||
| 130 | 145 | 10 | 11 | 14 | FU1281F0 | |
| 150 | 12 | 13 | 16 | FU1283F0 | ||
| 150 | 16 | 17 | 20 | FU1285F0 | ||
| 132 | 157 | 20 | 21 | 24 | FU1295F0 | |
| 135 | 160 | 19 | 20 | 23 | FU2133F0 | |
| 160 | 20 | 21 | 24 | FU2179F0 | ||
| 140 | 155 | 10 | 11 | 14 | FU1324F0 | |
| 160 | 12 | 13 | 16 | FU1325F0 | ||
| 160 | 16 | 17 | 20 | FU1328F0 | ||
| 165 | 19 | 20 | 23 | FU1332F0 | ||
| 165 | 20 | 21 | 24 | FU1333F0 | ||
| 145 | 170 | 19 | 20 | 23 | FU2134F0 | |
| 170 | 20 | 21 | 24 | FU2180F0 | ||
| 150 | 165 | 10 | 11 | 14 | FU1360F0 | |
| 170 | 12 | 13 | 16 | FU1361F0 | ||
| 170 | 16 | 17 | 20 | FU1364F0 | ||
| 175 | 16 | 17 | 20 | FU1366F0 | ||
| 175 | 20 | 21 | 24 | FU1368F0 | ||
| 155 | 180 | 19 | 20 | 24 | FU1393F0 | |
| 180 | 20 | 21 | 25 | FU2181F0 | ||
| 160 | 175 | 10 | 11 | 15 | FU1407F0 | |
| 180 | 12 | 13 | 17 | FU1409F0 | ||
| 180 | 16 | 17 | 21 | FU1412F0 | ||
| 185 | 16 | 17 | 21 | FU1414F0 | ||
| 185 | 19 | 20 | 24 | FU2076F0 | ||
| 185 | 20 | 21 | 25 | FU1416F0 | ||
| 170 | 185 | 10 | 11 | 15 | FU1444F0 | |
| 190 | 12 | 13 | 17 | FU1445F0 | ||
| 190 | 16 | 17 | 21 | FU1447F0 | ||
| 195 | 16 | 17 | 21 | FU1449F0 | ||
| 195 | 20 | 21 | 25 | FU1450F0 | ||
| 175 | 200 | 19 | 20 | 24 | FU1463F0 | |
| 200 | 20 | 21 | 25 | FU2182F0 | ||
| 180 | 200 | 16 | 17 | 21 | FU1486F0 | |
| 205 | 16 | 17 | 21 | FU1491F0 | ||
| 205 | 19 | 20 | 24 | FU1492F0 | ||
| 205 | 20 | 21 | 25 | FU1493F0 | ||
| 190 | 210 | 16 | 17 | 21 | FU1518F0 | |
| 215 | 16 | 17 | 21 | FU1520F0 | ||
| 215 | 20 | 21 | 25 | FU1521F0 | ||
| 199 | 219 | 11 | 12 | 16 | FU1530F0 | |
| 219 | 15 | 16 | 20 | FU1531F0 | ||
| 224 | 16 | 17 | 21 | FU1533F0 | ||
| 224 | 19 | 20 | 24 | FU1535F0 | ||
| 200 | 220 | 16 | 17 | 21 | FU1545F0 | |
| 225 | 16 | 17 | 21 | FU1548F0 | ||
| 225 | 19 | 20 | 24 | FU2135F0 | ||
| 225 | 20 | 21 | 25 | FU1550F0 | ||
| 210 | 230 | 16 | 17 | 21 | FU1576F0 | |
| 235 | 16 | 17 | 21 | FU1578F0 | ||
| 235 | 19 | 20 | 24 | FU1580F0 | ||
| 235 | 20 | 21 | 25 | FU1581F0 | ||
| 220 | 240 | 16 | 17 | 21 | FU1597F0 | |
| 245 | 16 | 17 | 21 | FU1598F0 | ||
| 245 | 19 | 20 | 24 | FU1600F0 | ||
| 245 | 20 | 21 | 25 | FU1601F0 | ||
| 224 | 244 | 11 | 12 | 16 | FU1608F0 | |
| 244 | 15 | 16 | 20 | FU1610F0 | ||
| 249 | 15 | 16 | 20 | FU1611F0 | ||
| 249 | 18 | 19 | 23 | FU1612F0 | ||
| 249 | 19 | 20 | 24 | FU1613F0 | ||
| 225 | 245 | 16 | 17 | 21 | FU1622F0 | |
| 250 | 16 | 17 | 21 | FU1624F0 | ||
| 250 | 19 | 20 | 24 | FU1626F0 | ||
| 250 | 20 | 21 | 25 | FU1627F0 | ||
| 230 | 250 | 16 | 17 | 21 | FU1638F0 | |
| 255 | 16 | 17 | 21 | FU1640F0 | ||
| 255 | 19 | 20 | 24 | FU1642F0 | ||
| 255 | 20 | 21 | 25 | FU1643F0 | ||
| 240 | 260 | 16 | 17 | 21 | FU1658F0 | |
| 265 | 16 | 17 | 21 | FU1661F0 | ||
| 265 | 19 | 20 | 24 | FU1663F0 | ||
| 265 | 20 | 21 | 25 | FU1664F0 | ||
| 250 | 270 | 16 | 17 | 21 | FU1679F0 | |
| 275 | 16 | 17 | 21 | FU1681F0 | ||
| 275 | 19 | 20 | 24 | FU1683F0 | ||
| 275 | 20 | 21 | 25 | FU1684F0 | ||
| 260 | 285 | 19 | 20 | 24 | 8 | FU1705F0 |
| 290 | 19 | 20 | 24 | FU1707F0 | ||
| 265 | 297 | 24 | 25 | 29 | FU1714F0 | |
| 297 | 25 | 26 | 30 | FU2183F0 | ||
| 270 | 295 | 19 | 20 | 24 | FU1721F0 | |
| 300 | 19 | 20 | 24 | FU1723F0 | ||
| 300 | 24 | 25 | 29 | FU1725F0 | ||
| 300 | 25 | 26 | 30 | FU1726F0 | ||
| 280 | 305 | 19 | 20 | 24 | FU1734F0 | |
| 310 | 19 | 20 | 24 | FU1736F0 | ||
| 312 | 24 | 25 | 29 | FU2136F0 | ||
| 312 | 25 | 26 | 30 | FU2184F0 | ||
| 290 | 315 | 19 | 20 | 24 | FU1749F0 | |
| 320 | 19 | 20 | 24 | FU1751F0 | ||
| 300 | 325 | 19 | 20 | 24 | FU1763F0 | |
| 330 | 19 | 20 | 24 | FU1765F0 | ||
| 332 | 24 | 25 | 29 | FU2137F0 | ||
| 332 | 25 | 26 | 30 | FU2185F0 | ||
